PROCESS Step

Overview​

The PROCESS step is used to execute a backend Camunda process as part of a wizard workflow.
It is typically placed after metadata or configuration steps, where the user is ready to start an automated operation such as:

  • Import data
  • Running a publication workflow
  • Performing validations or transformations
  • Exporting rendered documents

The PROCESS step provides UI feedback, monitors progress, and updates the step status automatically.

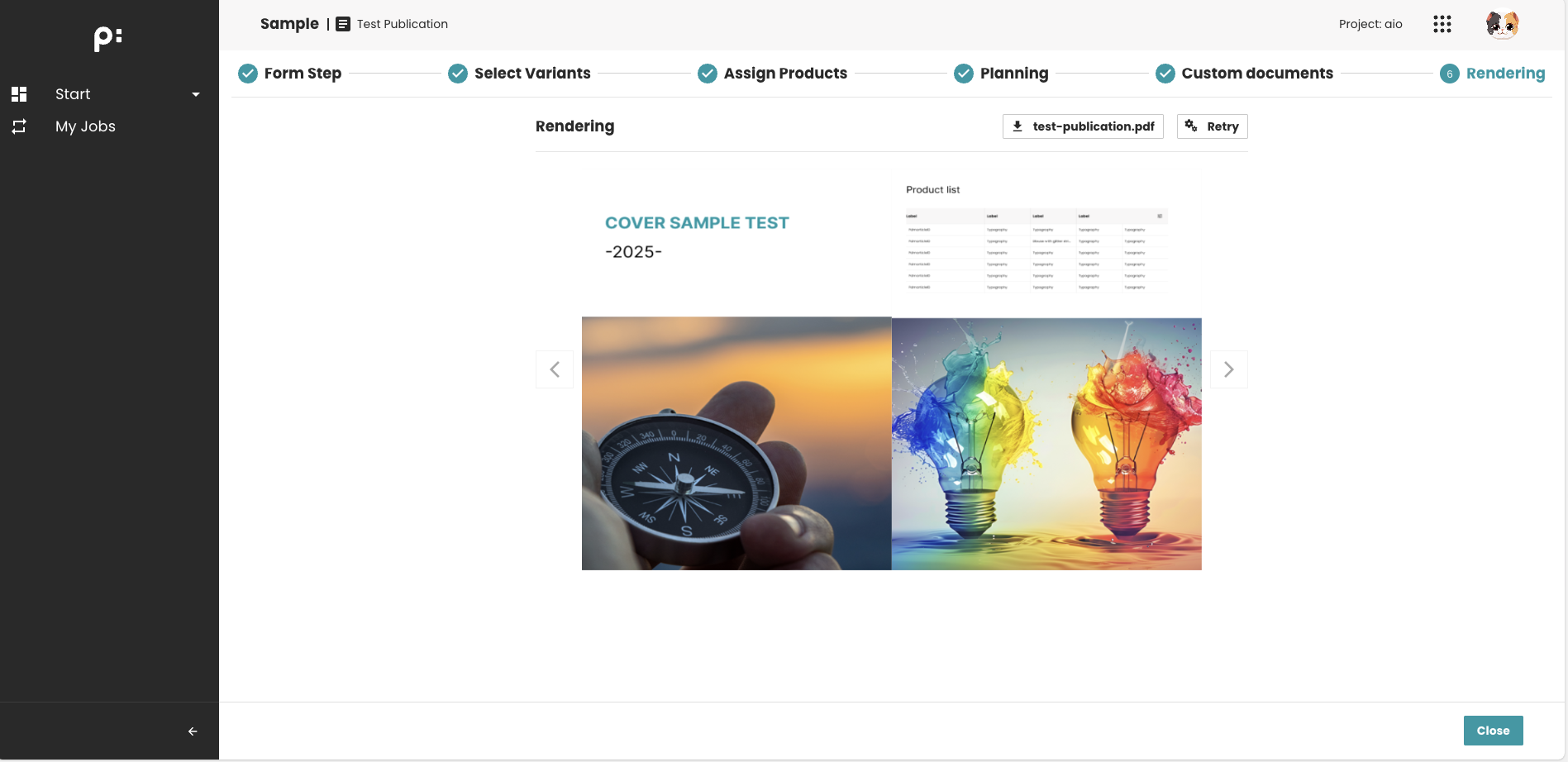

process-step-sample

Key Features​

  • Executes a Camunda process using the configured process_def_key
  • Displays real-time or periodic status updates
  • Can block progression until the process finishes
  • Supports download links for generated output files (e.g., PDFs)
  • Allows retrying or restarting the process in case of failure
  • Can show preview images generated by the process
  • Optional autorun mode: process starts automatically when entering the step

Behavior Summary​

Process Execution​

When the user enters the step:

  • If autorun=true, the process starts immediately
  • Otherwise, the user must click Execute

The step displays:

  • Current process state
  • Current user tasks (in multiple levels)
  • Progress completed tasks

Completion Rules​

The step is considered complete when:

  • The Camunda process reaches a end state
  • Mandatory outputs (if any) are available

If required=true, the wizard cannot continue unless:

  • The process has completed successfully
  • Or the user explicitly retries after a failure

Blocking Behavior​

If blockOnRunning=true, the step prevents saving in other steps until the process finishes.

Sample Configuration​

<wizardSteps>
    <wizardStep id="render_process">
        <label>Rendering</label>
        <type>PROCESS</type>
        <status>rendering</status>
        <required>true</required>
        <parameters>
            <!-- The Camunda process definition key -->
            <parameter key="process_def_key" id="process_def_key_1">render_process</parameter>
            <!-- Optional: enables or disables the `Download` feature. Default value is `true` if not configured -->
            <parameter id="export">true</parameter>
            <!-- Optional: enables or disables the `Preview` feature. Default value is `false` if not configured -->
            <parameter id="preview">true</parameter>
            <!-- Optional: defines the path for obtaining preview images. This parameter is only effective if `preview` is set to `true` -->
            <parameter id="preview_path">/opt/pubserver/userdata/download/w2p/preview/</parameter>
            <!-- Optional: defines the label for the `Execute` button on the UI. Supports language-dependent translation. Default value is `Execute` (English) if not configured -->
            <parameter id="execute_label">execute_label</parameter>
            <!-- Optional: defines the label for the `Retry` button on the UI. Supports language-dependent translation. Default value is `Retry` (English) if not configured -->
            <parameter id="retry_label">retry_label</parameter>
            <!-- Optional: specifies the icon for the `Retry` button on the UI, currently, we only support 4 icons: `add`|`download`|`sync`|`setting`. The Process Type icon will be used if not configured -->
            <parameter id="retry_icon">sync</parameter>
            <!-- Optional: enables or disables the `Autorun` feature. Effective only if only one process definition key is configured. Default value is `false` if not configured -->
            <parameter id="autorun">true</parameter>
            <!-- Optional: enables or disables the `Completed Tasks` UI section. Default value is `true` if not configured -->
            <parameter id="show_completed_tasks">false</parameter>
            <!-- Optional: enables or disables the feature to stop/terminate the active instance. Default value is `true` if not configured -->
            <parameter id="stoppable">false</parameter>
        </parameters>
    </wizardStep>
</wizardSteps>

Sample Screenshots​

process-starting

Process is starting

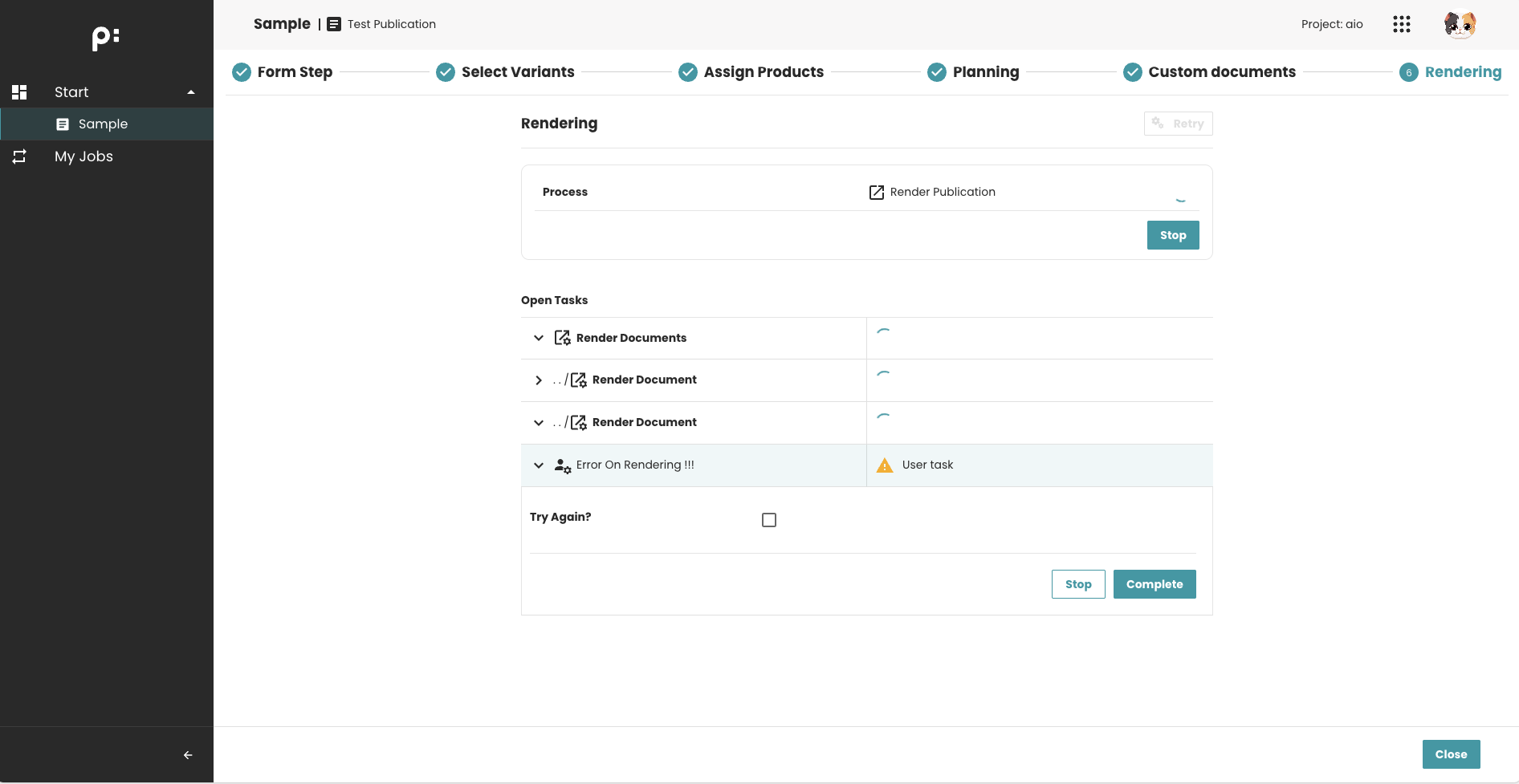

process-user-task-tree

Current user task list

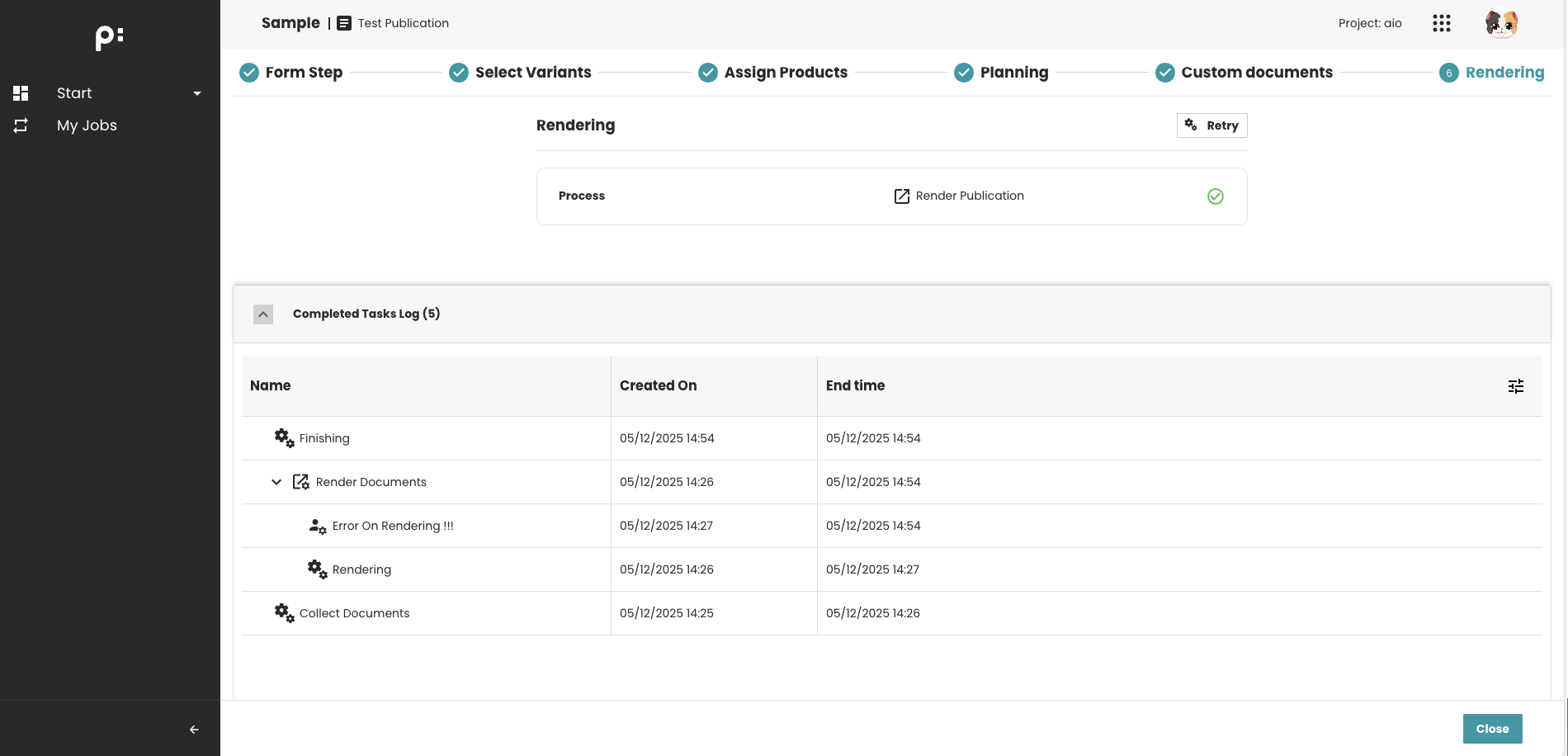

process-finish

Process is completed, the completed tasks can be shown as a tree

process-review

Download process is finished, preview is shown and download is available

process-stop

The process can be stopped, a confirm popup is required.

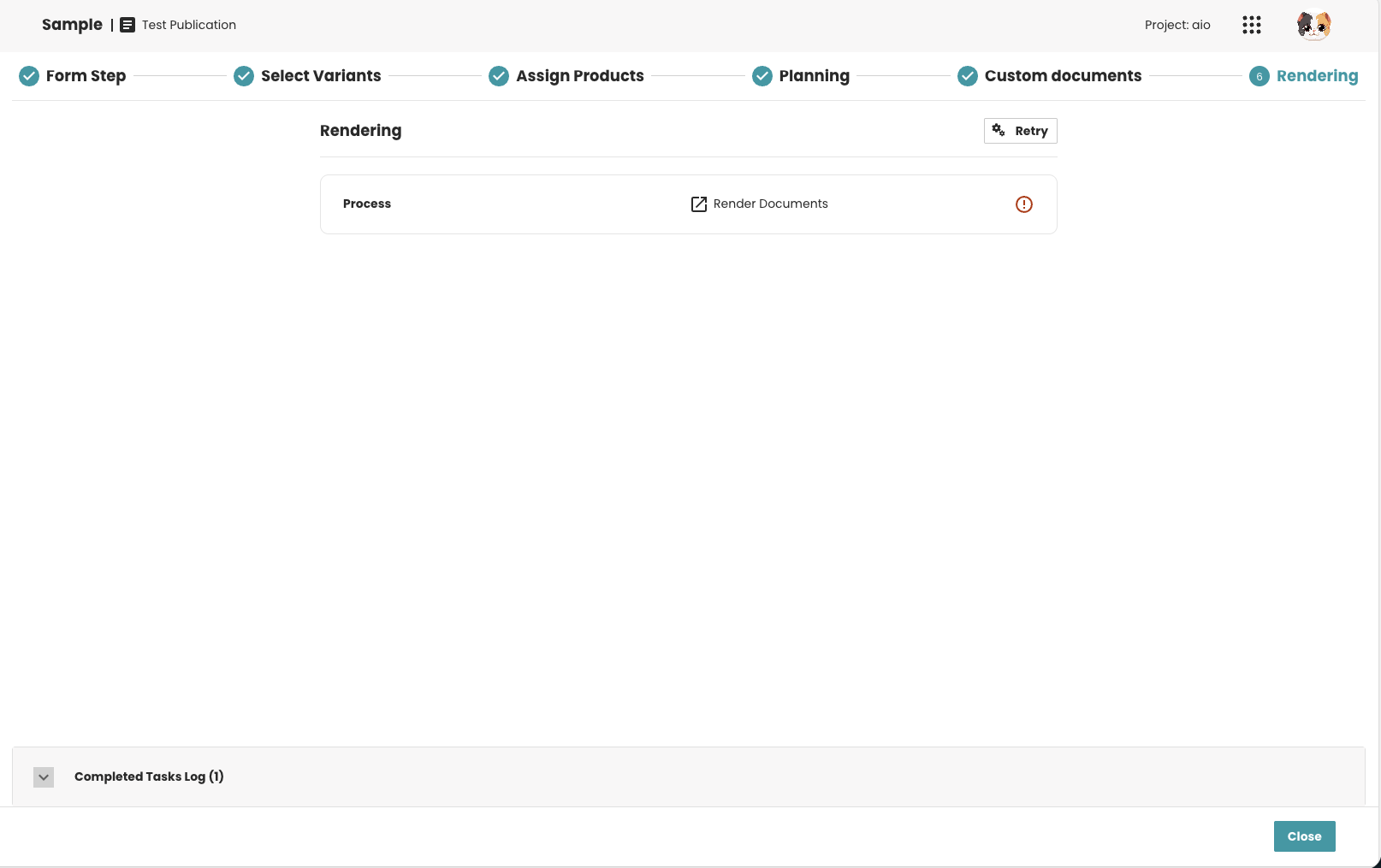

process-terminated

If the process is terminated, Retry button is enabled to allow a rerun.

When to Use This Step​

Use the PROCESS step when:

  • You need to run an automated backend workflow
  • A user must explicitly confirm or review the result
  • A process renders documents or generates files...
  • You want to enforce waiting for completion before continuing

Examples:

  • Rendering publications
  • Generating preview images
  • Importing document plannings
  • Running data synchronization jobs

Notes​

  • Must define a valid process_def_key; otherwise, the step will fail to start.
  • Autorun is useful for flows where user interaction is not needed.
