PLANNING_TREE Step

Overview​

The PLANNING_TREE step displays the publication’s planning structure in a hierarchical tree view. It is typically used to show documents and planning units along with their configured content metadata columns.

Common use cases include:

  • Reviewing publication structure
  • Displaying planning units in a tree
  • Showing content metadata values in columns
  • Providing context before other wizard steps

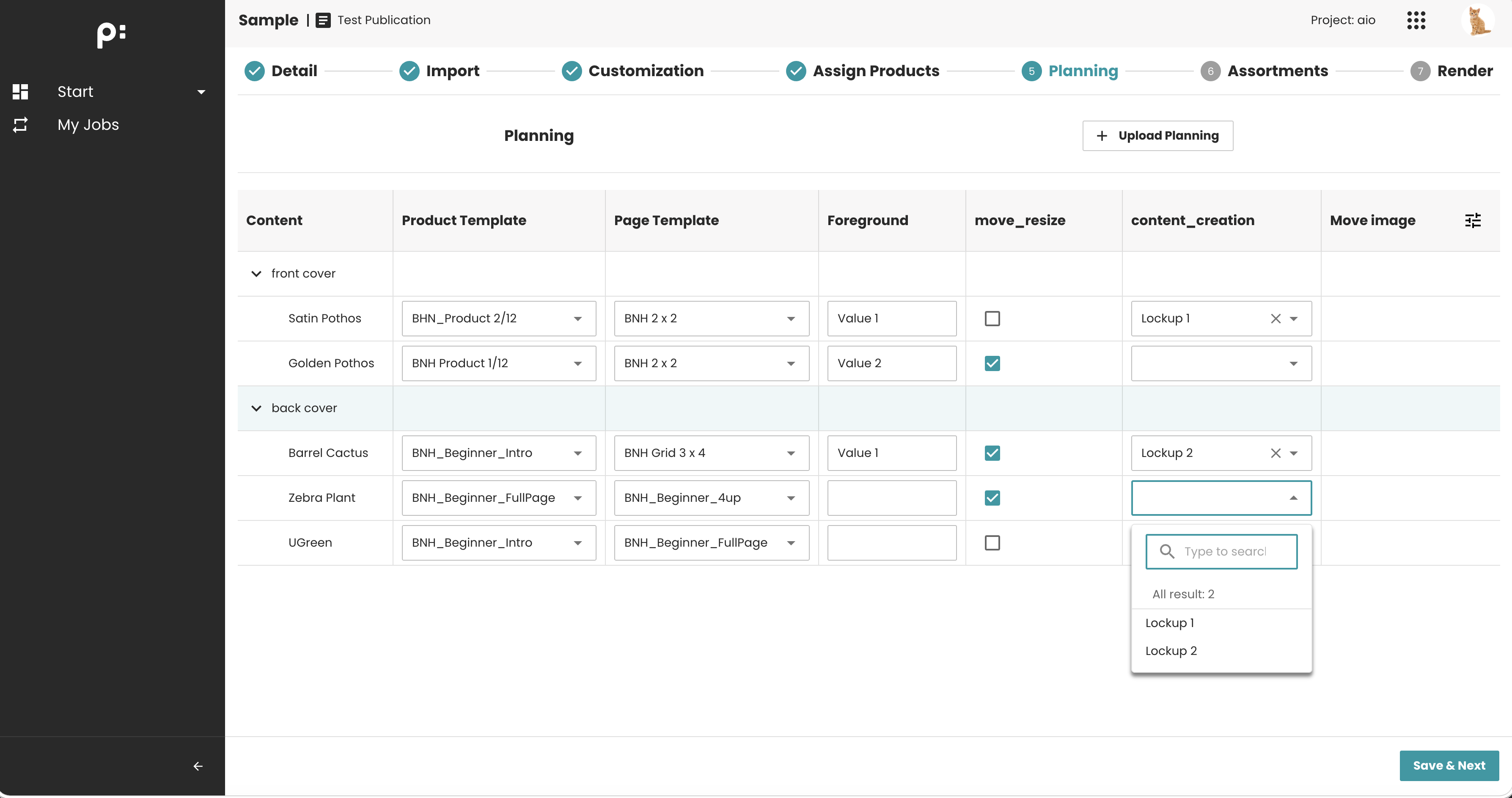

planning-step

Key Features​

  • Hierarchical tree display (expand/collapse)
  • Required columns and default columns defined by backend configuration (ISON)
  • Displays content metadata for each planning node
  • Often used as read-only informational step

Behavior Summary​

Tree Loading​

When the user enters the step:

  • The frontend loads the planning structure from the backend
  • Columns are shown based on backend configuration
  • Branches can be expanded to view nested items

Interaction Behavior​

Typically read-only.

Users can:

  • Expand/collapse nodes
  • View column values
  • Inspect planning hierarchy

Sample Configuration​

<wizardSteps>
    <wizardStep id="planning_overview">
        <label>Planning Overview</label>
        <type>PLANNING_TREE</type>
        <status>planning_overview_status</status>
        <required>false</required>
        <parameters>
            <!-- Optional: specifies static and metadata columns to configure the tree. Default: all static columns and available content metadata will be shown -->
            <parameter key="entity_column" id="static_columns">static_columns</parameter>
            <parameter key="entity_column" id="metadata_columns">metadata_columns</parameter>
        </parameters>
    </wizardStep>
</wizardSteps>

<entityColumns>
<entityColumn type="static" id="static_columns">
    ...
</entityColumn>
<entityColumn type="metadata" id="metadata_columns">
    ...
</entityColumn>
</entityColumns>

When to Use This Step​

Use the PLANNING_TREE step when you need to:

  • Show the publication structure
  • Provide context before editing or assignment steps
  • Visualize planning content metadata
  • Allow users to review documents and planning data in a structured way

Typical examples:

  • Showing structure after product assignment
  • Presenting planning elements during workflow setup

Notes​

  • Columns are defined by backend configuration: entity columns.
  • Editing capabilities depend entirely on backend implementation.
  • No custom parameters should be added unless supported by your platform version.
