FORM Step

Overview​

The FORM step displays a dynamic form that allows users to enter or update metadata for a publication. This step is commonly used at the beginning of a workflow to gather essential information before continuing.

The form layout and fields are fully configurable, making this step flexible for many different wizard scenarios.

Key Features​

  • Renders a customizable form based on configured Form Fields
  • Supports both text inputs and more complex controls (dropdown, date, number, etc.)
  • Automatically duplicates the publication if the starting point is a Template
  • Optionally runs a backend process after duplication
  • Ensures users complete mandatory fields before proceeding

form-step

Behavior Summary​

  • In Template Mode The system duplicates the template publication. The recursive duplication can be controlled by a boolean flag. Form edits then apply to the newly created publication.

  • In Normal Mode The form directly edits the active publication’s metadata.

  • Metadata Updating Recursively flag The metadata updating could be triggered recursively to all level of the publication by a boolean flag.

  • Validation Required fields must be filled in. Invalid or missing values prevent saving the changes.

Sample Configuration​

<wizardSteps>
  <wizardStep id="form_step">
    <label>Form Step</label>
    <type>FORM</type>
    <status>form_status</status>
    <required>true</required>
    <parameters>
      <!-- Form fields -->
      <parameter id="title" key="form_field"/>
      <parameter id="category" key="form_field"/>
      <parameter id="priority" key="form_field"/>

      <!-- Optional post-duplication process -->
      <parameter id="duplicate_post_process">init_process</parameter>
    </parameters>
  </wizardStep>
</wizardSteps>

<formFields>
  <formField id="title">
    <label>Title</label>
    <type>text</type>
    <required>true</required>
    <propertyAttribute>name</propertyAttribute>
  </formField>

  <formField id="category">
    <label>Category</label>
    <type>select</type>
    <selection>category_selection</selection>
    <metadata>category</metadata>
  </formField>

  <formField id="priority">
    <label>Priority</label>
    <type>number</type>
    <metadata>priority</metadata>
  </formField>
</formFields>

Sample Screenshots​

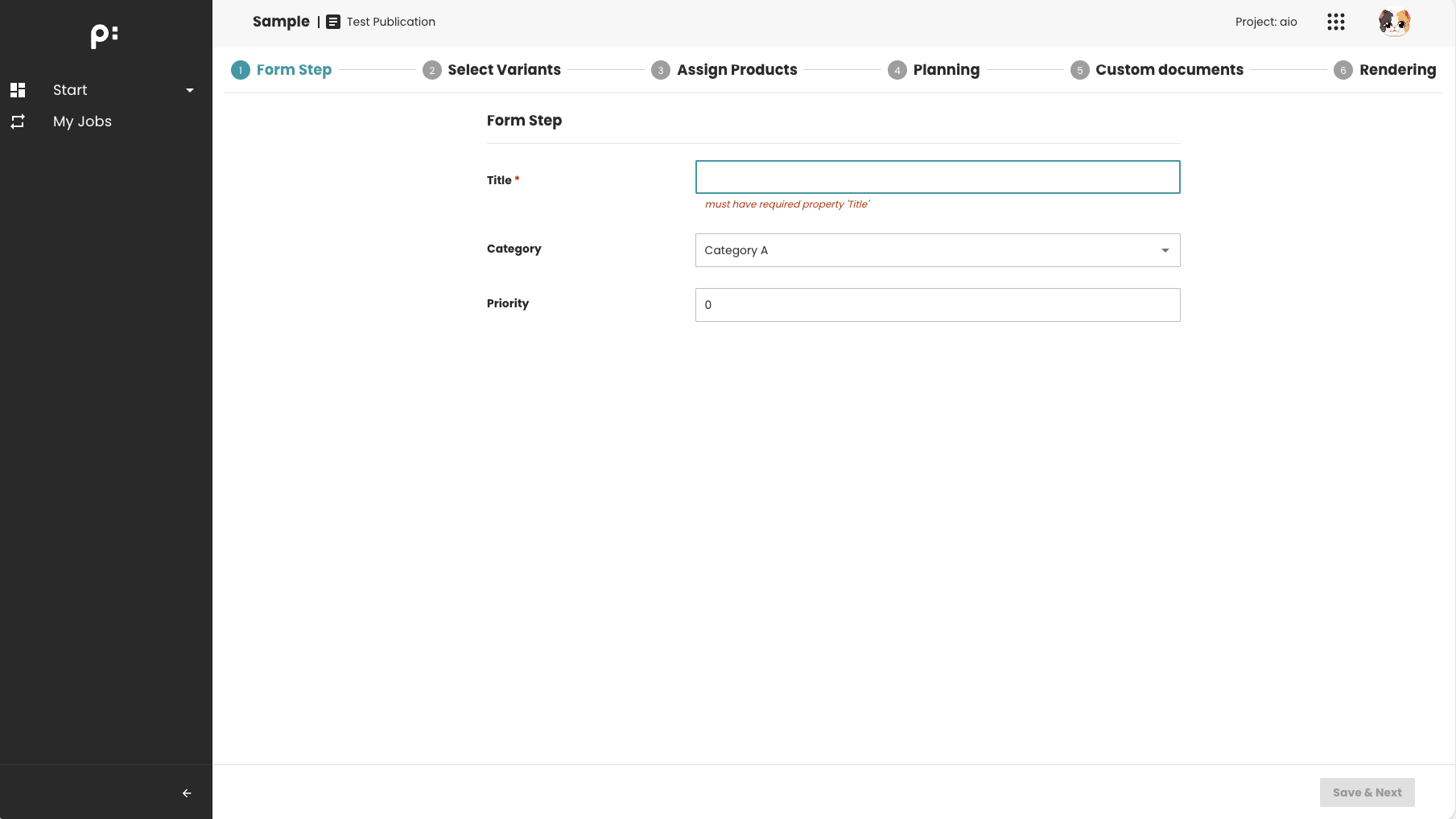

form-step-invalid

The Form is invalid: the required field is empty -> Save button is disabled.

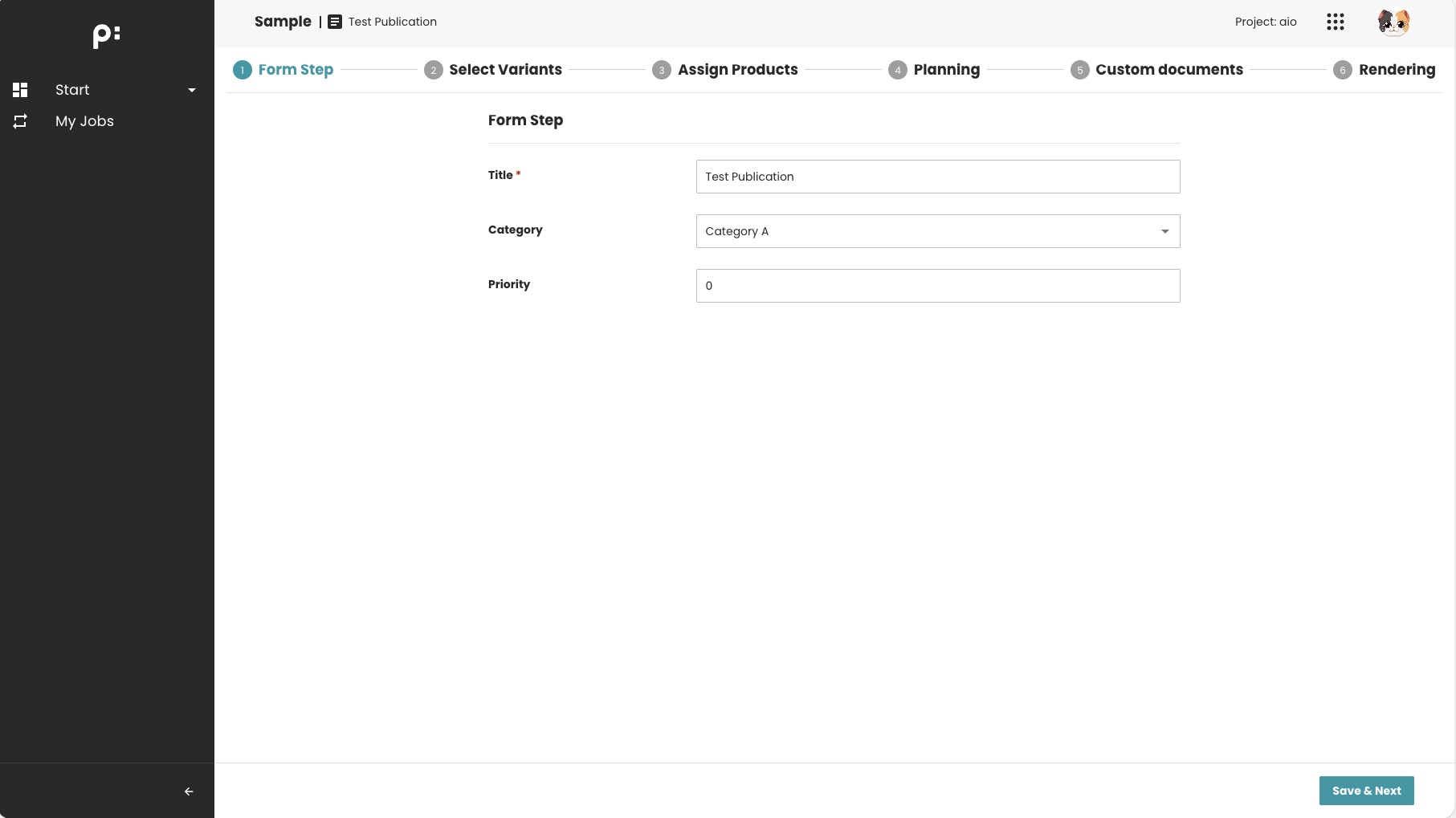

form-step-can-save

The required field is filled -> Save button is enabled.

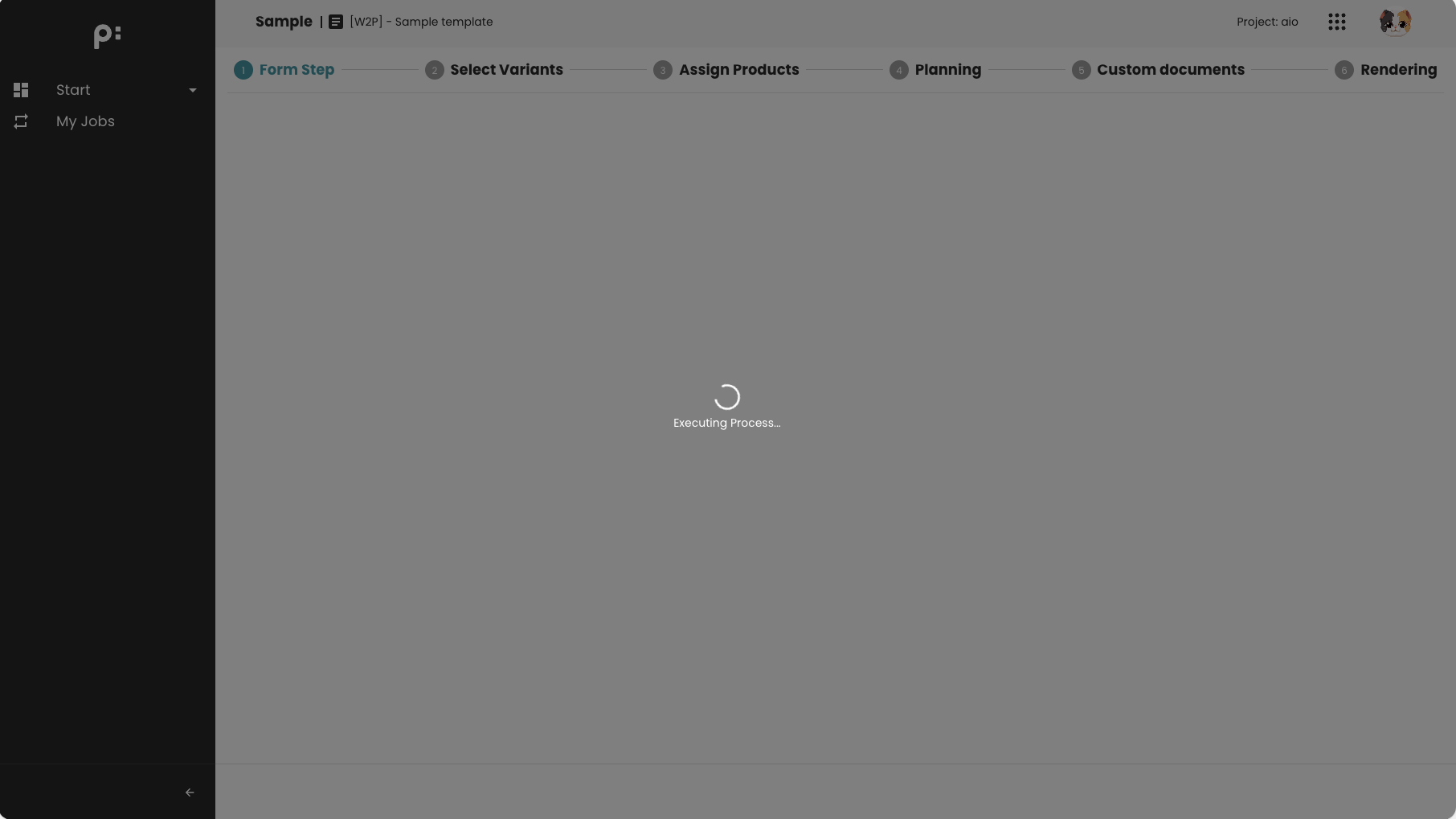

form-step-executing-process

After the publication, a process can be executed for some background tasks (optional)

When to Use This Step​

Use the FORM step when you need to:

  • Collect user input before performing a process
  • Edit metadata associated with the publication
  • Initialize or update workflow settings

Notes​

  • Define form field settings in <formFields> to ensure proper rendering.
  • Ordering of <parameter key="form_field"> determines the order in the UI.
  • Only one optional duplicate_post_process is supported.
